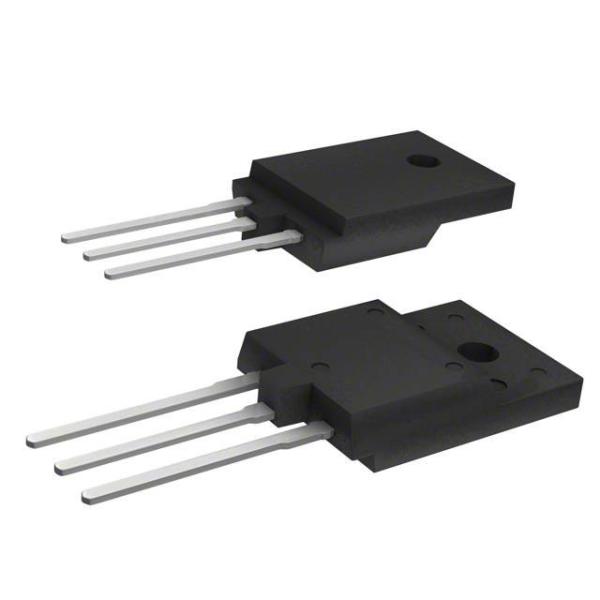

FDPF44N25T 250V 44A TO-220FP Tube Mosfet Power Transistor

    Buy cheap FDPF44N25T 250V 44A TO-220FP Tube Mosfet Power Transistor from wholesalers

    Buy cheap FDPF44N25T 250V 44A TO-220FP Tube Mosfet Power Transistor from wholesalers
    • Buy cheap FDPF44N25T 250V 44A TO-220FP Tube Mosfet Power Transistor from wholesalers

    FDPF44N25T 250V 44A TO-220FP Tube Mosfet Power Transistor

    Ask Lasest Price
    Brand Name : ON Semiconductor
    Model Number : FDPF44N25T
    Certification : Original Part
    Price : to be Negotiated
    Payment Terms : T/T, Western Union, Paypal, Wechat Pay
    Supply Ability : 1 Million pieces per Month
    Delivery Time : Immediate
    • Product Details
    • Company Profile

    FDPF44N25T 250V 44A TO-220FP Tube Mosfet Power Transistor

    FDPF44N25T Trans MOSFET N-CH 250V 44A 3-Pin(3+Tab) TO-220FP Tube




    Description :

    UniFETTM MOSFET is Fairchild Semiconductor's high voltage MOSFET family based on planar stripe and DMOS technology. This MOSFET is tailored to reduce on-state resistance, and to provide better switching performance and higher avalanche energy strength. This device family is suitable for switching power converter applications such as power factor correction (PFC), flat panel display (FPD) TV power, ATX and electronic lamp ballasts.




    Absolute Maximum Ratings :




    Applications :

    • PDP TV.
    • Lighting.
    • Uninterruptible Power Supply.
    • AC-DC Power Supply.


    Technical Specifications :

    PCB changed3
    Lead ShapeThrough Hole
    Package Width4.7
    Package Height15.87
    Package Length10.16
    MountingThrough Hole
    TabTab
    Product CategoryPower MOSFET
    ConfigurationSingle
    Process TechnologyUniFET
    Channel ModeEnhancement
    Channel TypeN
    Number of Elements per Chip1
    Maximum Drain Source Voltage (V)250
    Maximum Gate Source Voltage (V)±30
    Maximum Gate Threshold Voltage (V)5
    Maximum Continuous Drain Current (A)44
    Maximum Gate Source Leakage Current (nA)100
    Maximum IDSS (uA)1
    Maximum Drain Source Resistance (mOhm)69@10V
    Typical Gate Charge @ Vgs (nC)47@10V
    Typical Gate Charge @ 10V (nC)47
    Typical Input Capacitance @ Vds (pF)2210@25V
    Maximum Power Dissipation (mW)38000
    Typical Fall Time (ns)112
    Typical Rise Time (ns)402
    Typical Turn-Off Delay Time (ns)85
    Typical Turn-On Delay Time (ns)53
    Minimum Operating Temperature (°C)-55
    Maximum Operating Temperature (°C)150
    PackagingTube
    AutomotiveNo
    Pin Count3
    Supplier PackageTO-220FP
    Standard Package NameTO-220
    MilitaryNo



    for product datasheet, CONTACT US directly.
