330uF 6.3V Tantalum Chip Capacitor T490B337M006ATE800

    Buy cheap 330uF 6.3V Tantalum Chip Capacitor T490B337M006ATE800 from wholesalers

    Buy cheap 330uF 6.3V Tantalum Chip Capacitor T490B337M006ATE800 from wholesalers
    • Buy cheap 330uF 6.3V Tantalum Chip Capacitor T490B337M006ATE800 from wholesalers
    • Buy cheap 330uF 6.3V Tantalum Chip Capacitor T490B337M006ATE800 from wholesalers

    330uF 6.3V Tantalum Chip Capacitor T490B337M006ATE800

    Ask Lasest Price
    Brand Name : original
    Model Number : T490B337M006ATE800
    Certification : contact us
    Price : contact us
    Payment Terms : T/T,PayPal
    Supply Ability : 100000+pcs+35 working days
    Delivery Time : 25-35 working days
    • Product Details
    • Company Profile

    330uF 6.3V Tantalum Chip Capacitor T490B337M006ATE800

    T490B337M006ATE800

    Capacitor Tantalum Solid


    The KEMET T490 Series, designed for customer product applications (low temperature demanding applications), meets RoHS compliance with leads constructed of 100% matte tin and green molding compound. This series is classified as MSL (Moisture Sensitivity Level) 1 under J STD 020: unlimited floor life time at ≤30°C / 85% RH. Tin/lead (Sn/Pb) terminations are available upon request for any part number. Gold-plated terminations are also available for use with conductive epoxy attachment processes. Standard packaging of these devices is tape and reel in accordance with EIA 481. This system provides perfect compatibility with all tape-fed placement units.

    Key Features:

    • Taped and reeled per EIA 481
    • Symmetrical compliant terminations
    • Optional gold-plated terminations
    • Laser-marked case
    • Suitable for 3 x 260°C reflow passes
    • Halogen-free epoxy
    • Capacitance values of 47 μF to 470 μF
    • Tolerance of ±20%
    • Voltage rating of 4 – 10 VDC
    • 0.2% per 1,000 hours at 85ºC 0.5 VR Reliability
    • Small and low profile case sizes
    • RoHS Compliant and lead-free terminations
    • MSL Reflow Temp ≤ 260ºC = 1
    • Operating temperature range of -55°C to +40°C

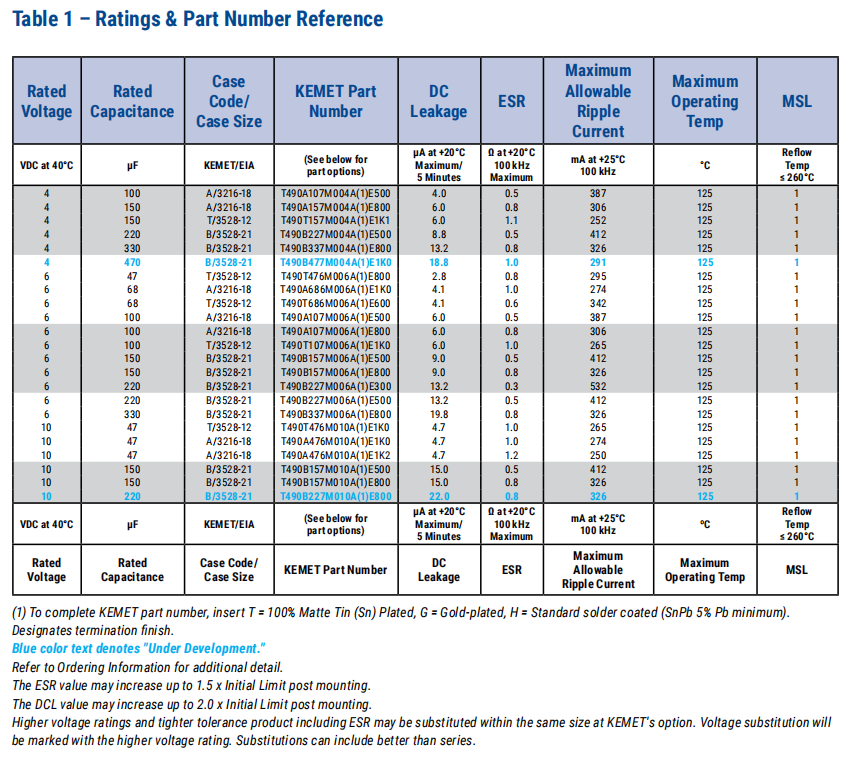

    Product Technical Specifications:

    EU RoHSCompliant
    ECCN (US)EAR99
    Part StatusActive
    HTS8532.21.00.50
    MountingSurface Mount
    TypeSolid
    Capacitance Value330uF
    Tolerance20%
    Voltage6.3VDC
    ESR (Ohm)0.8
    Equivalent Series Resistance TypeStandard
    IR (mA)326
    IL (uA)19.8
    PolarityPolar
    Special FeaturesLead Free Terminations|RoHS Compliant|Laser Marked Case
    Fail Safe with Built-in FuseNo
    High Shock and VibratingNo
    Case CodeB
    Case StyleMolded
    ConstructionFlat
    Termination StyleInward L
    Number of Terminals2
    Size (mm)3.5 X 2.8 X 1.9
    Package/Case3528-21
    Temperature Range @ Derated Voltage (°C)40 to 125
    Minimum Operating Temperature (°C)-55
    Maximum Operating Temperature (°C)125
    PackagingTape and Reel
    Product Length (mm)3.5
    Product Depth (mm)2.8
    Product Height (mm)1.9
    Length Tolerance (mm)±0.2
    Depth Tolerance (mm)±0.2
    Height Tolerance (mm)±0.2

    Overview:
    The KEMET T490, designed for customer product applications (low temperature demanding applications),
    meets RoHS compliance with leads constructed of 100% matte tin and a green molding compound. The T490 is
    classified as MSL (Moisture Sensitivity Level) 1 under J STD 020: unlimited floor lifetime at ≤ 30°C/85% RH. Tin/lead (Sn/Pb) terminations are available upon request for any part number.
    Gold-plated terminations are also available for use with conductive epoxy attachment processes. Standard packaging of these devices is Tape & Reel in accordance with EIA 481. This system provides perfect compatibility with all tape-fed placement units.
