    1812 1800 Ohms Chip Bead Inductor , Ferrite Bead Inductor For Power Lines

    Ask Lasest Price
    Brand Name : Original brand
    Model Number : FBMH4532MM182PT
    Certification : Original
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 100000pcs
    Delivery Time : 2-3days
    • Product Details
    • Company Profile

    1812 1800 Ohms Chip Bead Inductor , Ferrite Bead Inductor For Power Lines

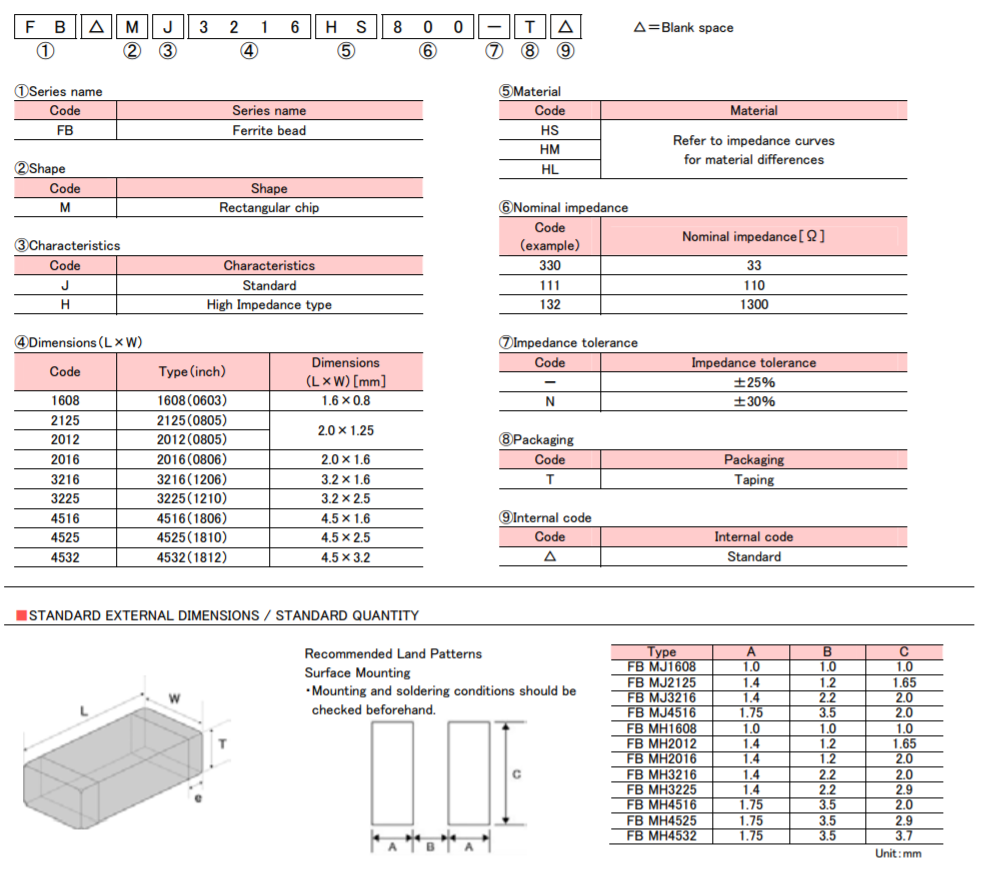

    FBMH4532MM182PT HI CUR CHP BD 1812 1800ohms Chip Ferrite Beads Chip Bead Inductors for Power Lines

    RELIABILITY DATA

    1. Impedance:
    1) Specified Value: Within the specified tolerance
    2) Test Methods and Remarks
    Measuring equipment :
    Impedance analyzer (HP4291A) or its equivalent
    Measuring frequency : 100±1 MHz

    2. DC Resistance:
    1) Specified Value: Within the specified range
    2) Test Methods and Remarks
    Four-terminal method
    Measuring equipment : Milliohm High-Tester 3226 (Hioki Denki) or its equivalent

    3. Vibration
    1) Specified Value:
    Appearance : No significant abnormality
    Impedance change : Within ±30% of the initial value
    2) Test Methods and Remarks
    According to JIS C 0040.
    Vibration type : A
    Time : 2 hrs each in X,Y, and Z directions
    Total: 6 hrs
    Frequency range : 10 to 55 to 10Hz (/min.)
    Amplitude : 1.5 mm (shall not exceed acceleration 196m/s2 )
    Mounting method : Soldering onto PC board

    Categories

    Chip Ferrite Beads

    1812 1800ohms
    Operating Temperature Range-40℃~+125℃ Including self-generated heat
    Storage Temperature Range-40℃~+85℃
    Size1812 (4532 metric)
    TypeChip Bead Inductors for Power Lines
    Terminal TypeSMD/SMT
    Impedance1.8 kOhms
    Maximum DC Current700 mA



    FAQ:

    Q. Are your products original?
    A: Yes, all products are original and produced by original manufacturers.

    Q. What is your lead time?
    A: The lead time is about 3 days if it is in-stock products. Most of the products can be sent out within 3 days after payment is confirmed. We must let you know the lead time during our communication.

    Q. What is your warranty?
    A: 120 days after goods have been received. Our products will be 100% tested before they are sent out.


    For product datasheet, please contact us directly.
