AD660BRZ DAC Current Steering 16 Bit 24 Pin SOIC W Tube

    Buy cheap AD660BRZ DAC Current Steering 16 Bit 24 Pin SOIC W Tube from wholesalers

    Buy cheap AD660BRZ DAC Current Steering 16 Bit 24 Pin SOIC W Tube from wholesalers
    • Buy cheap AD660BRZ DAC Current Steering 16 Bit 24 Pin SOIC W Tube from wholesalers

    AD660BRZ DAC Current Steering 16 Bit 24 Pin SOIC W Tube

    Ask Lasest Price
    Brand Name : Analog Devices
    Model Number : AD660BRZ
    Certification : Original Part
    Price : to be Negotiated
    Payment Terms : T/T, Western Union, Paypal, Wechat Pay
    Supply Ability : 1 Million pieces per Month
    Delivery Time : Immediate
    • Product Details
    • Company Profile

    AD660BRZ DAC Current Steering 16 Bit 24 Pin SOIC W Tube

    AD660BRZ DAC 1-CH R-2R/Current Steering 16-bit 24-Pin SOIC W Tube


    Description :


    1. The AD660 is a complete 16-bit DAC, with a voltage reference, double-buffered latches, and an output amplifier on a single chip.
    2. The internal buried Zener reference is laser trimmed to 10.000 V with a ±0.1% maximum error and a temperature drift performance of ±15 ppm/°C. The reference is available for external applications.
    3. The output range of the AD660 is pin programmable and can be set to provide a unipolar output range of 0 V to 10 V or a bipolar output range of −10 V to +10 V. No external components are required.
    4. The AD660 is both dc and ac specified. DC specifications include ±1 LSB INL and ±1 LSB DNL errors. AC specifications include 0.009% THD + N and 83 dB SNR.
    5. The double-buffered latches on the AD660 eliminate data skew errors and allow simultaneous updating of DACs in multiDAC applications.
    6. The clear function can asynchronously set the output to 0 V regardless of whether the DAC is in unipolar or bipolar mode.
    7. The output amplifier settles within 10 μs to ±½ LSB for a full-scale step and within 2.5 μs for a 1 LSB step over temperature. The output glitch is typically 15 nV-s when a full-scale step is loaded.

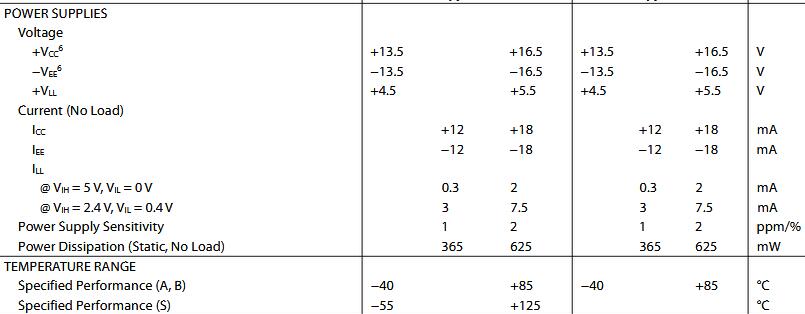

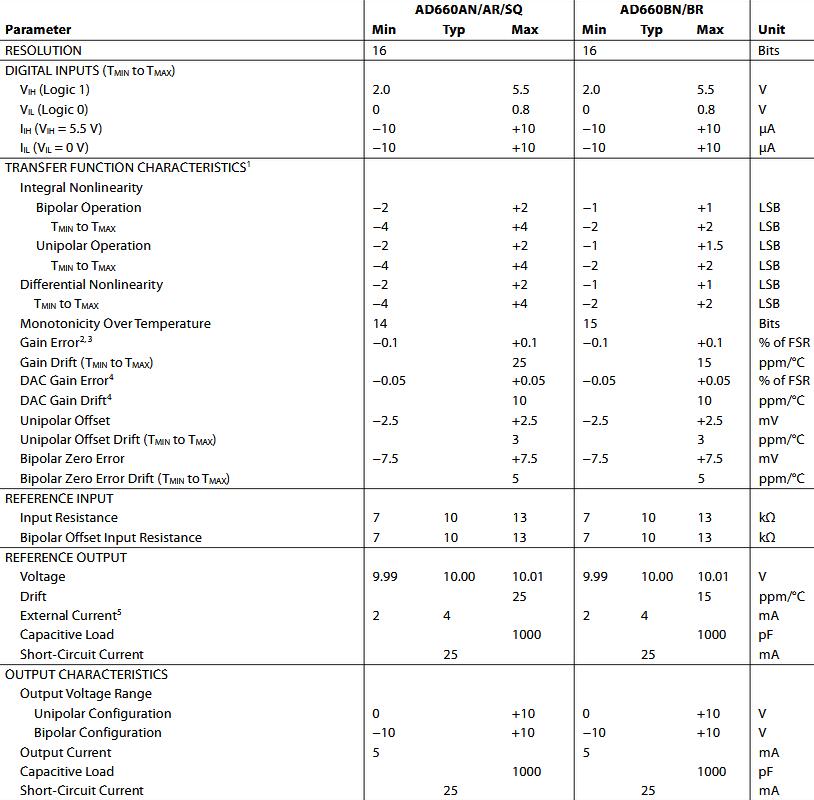

    Technical Specifications :



    for product datasheet, CONTACT US directly.

    Product Tags:

    24 SOIC IC Swith



    AD660BRZ


    Quality AD660BRZ DAC Current Steering 16 Bit 24 Pin SOIC W Tube for sale
